74 01 140 | Knipex
Power side cutter, 140 mm, 131 g, cut capacity (–/3.1/2/1.5 mm), 74 01 140
Order No.: 05L2580
EAN: 4003773039747
MPN:
74 01 140
7401140
Unit Price (€ / pc.)
24.4307 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
24.43 € *
Price list
Quantity
Price per unit*
1 pcs.
24.4307 €
6 pcs.
21.9912 €
*incl. VAT plus shipping costs
Subject to prior sale

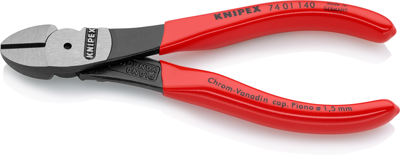

High leverage diagonal cutter, 74 01 140, Knipex
For very tough, continuous use. High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio. Precision cutting edges additionally induction hardened (cutting edge hardness approx. 64 HRC), for all sorts of wire including piano wire. Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened
Technical Data
- Material: Chromium-Vanadium steel
- Weight: 131 g
- Length: 140 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ESD protection | No | |
| Cutting capicity (Piano wire) | 1.5 mm | |
| Weight | 131 g | |
| Cutting edge | with facet | |
| Cutting capacity (medium-hard) | 3.1 mm | |
| Version | power side cutter | |
| Material | chromium-vanadium steel | |
| Length | 140 mm | |
| 1000V Insulated | No | |
| Cutting capicity (hard) | 2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
