64 32 120 ESD | Knipex
ESD end cutting pliers, 120 mm, 92 g, cut capacity (1.5/1/0.5 mm/–), 64 32 120 ESD
Order No.: 05L2509
EAN: 4003773025078
MPN:
64 32 120 ESD
6432120ESD
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
70.567 € *
Available: 1 pcs.
Available in 7 Days: 50 pcs. - if ordered today

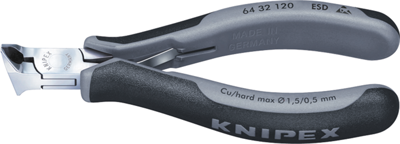

End cutting nipper, 64 32 120 ESD, Knipex
Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Electrically discharging handles - dissipative. Sturdy, zero backlash box joint. Low-friction double spring for gentle and even opening. The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools. Cutting edges additionally induction hardened, cutting edge hardness at least 56 HRC. With two-colour dual component grips, black/grey. High-grade special tool steel, forged, multi stage oil-hardened
Technical Data
- Material: Special steel
- Weight: 92 g
- Length: 120 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | end cutting pliers | |
| ESD protection | Yes | |
| 1000V Insulated | No | |
| Length | 120 mm | |
| Weight | 92 g | |
| Cutting edge | with facet | |
| Cutting capacity (soft) | 1.5 mm | |
| Cutting capacity (medium-hard) | 1 mm | |
| Cutting capicity (hard) | 0.5 mm | |
| Material | special steel |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
