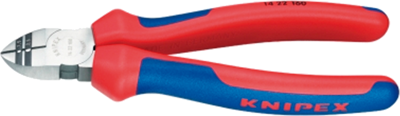

14 22 160 | Knipex
Stripping side cutter, 160 mm, 206 g, cut capacity (2.5/1.5/2.5 mm/–), 14 22 160
Order No.: 05L2468
EAN: 4003773034988
MPN:
14 22 160
1422160
Unit Price (€ / pc.)
42.7686 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
42.77 € *
Price list
Quantity
Price per unit*
1 pcs.
42.7686 €
6 pcs.
38.4846 €
*incl. VAT plus shipping costs
Subject to prior sale
Diagonal insulation stripper, 14 22 160, Knipex
With long cutter. High cutting capacity due to high leverage joint. Precision stripping holes for single conductors of 1.5 and 2.5 mm². Convenient cutting of NYM cables up to 5 x 2.5 mm². Long tips for ultra fine cutting work also in confined areas. Induction hardened precision blades, cutting edge hardness approx. 60 HRC. Vanadium electric steel, forged, multi stage oil-hardened
Technical Data
- Material: Vanadium electrical steel
- Weight: 206 g
- Length: 160 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Weight | 206 g | |
| Cutting edge | with facet | |
| Material | vanadium electrical steel | |
| Length | 160 mm | |
| Cutting capacity (medium-hard) | 1.5 mm | |
| ESD protection | No | |
| Cutting capicity (hard) | 2.5 mm | |
| 1000V Insulated | No | |
| Version | stripping side cutter | |
| Cutting capacity (soft) | 2.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
| SVHC free | Yes |
