97 71 180 | Knipex

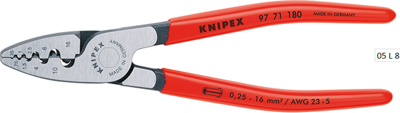

Crimping pliers for wire end ferrules, 0.25-16 mm², AWG 23-5, Knipex 97 71 180
Order No.: 05L8386
EAN: 4003773040668
MPN:
97 71 180
9771180
Unit Price (€ / pc.)
37.0328 € *
Available: 1 pcs.
Available in 7 Days: 10 pcs. - if ordered today
Total Price:
37.03 € *
Price list
Quantity
Price per unit*
1 pcs.
37.0328 €
6 pcs.
33.3319 €
*incl. VAT plus shipping costs
Subject to prior sale
Also as VDE version. Easy crimping due to optimised transmission ratio. Light and slim design. For crimping end sleeves (ferrules) according to DIN 46228 parts 1 + 4 from 0.25 to 16 mm². Crimping in marked half-round dies for reliable connections between the sleeve and the conductor. 9 particularly deep dies with conical side faces. Special tool steel, forged, oil-hardened
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | wire end ferrules | |
| Crimping Range (mm²) | 0.25-16 mm² | |
| Crimping Range (AWG) | AWG 23-5 | |
| Length | 180 mm | |
| Weight | 205 g |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
