97 52 63 | Knipex

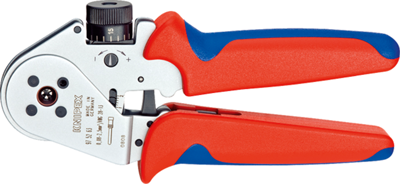

Four-mandrel crimping pliers for turned contacts, 0.08-2.5 mm², AWG 28-13, Knipex 97 52 63
Order No.: 05L8370
EAN: 4003773050148
MPN:
97 52 63
975263
Unit Price (€ / pc.)
556.5868 € *
Available in 7 Days: 10 pcs. - if ordered today
For crimping turned contacts. Four-mandrel crimping for top-quality crimping connections. Mandrel gauge to check the basic setting. Repetitive, high crimping quality due to integral lock (self-releasing mechanism). Optimum transmission of force due to highly effective lever action for fatigue-reduced operation. High operation comfort thanks to handy shape. Chrome vanadium electric steel in special quality, oil-hardened Model: Fine adjustment of pressure depending on the conductor's diameter by means of adjusting wheel. Pliers in a plastic case with foam insert and standard locator for precise positioning of the contacts.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | turned contacts | |
| Crimping Range (mm²) | 0.08-2.5 mm² | |
| Crimping Range (AWG) | AWG 28-13 | |
| Length | 180 mm | |
| Weight | 388 g |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
| Substance description | Lead |
