97 52 63 DG | Knipex

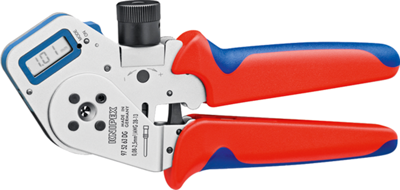

Four-mandrel crimping pliers for turned contacts, 0.08-2.5 mm², AWG 28-13, Knipex 97 52 63 DG
Order No.: 05L8372
EAN: 4003773063209
MPN:
97 52 63 DG
975263DG
Unit Price (€ / pc.)
786.9708 € *
Available in 7 Days: 10 pcs. - if ordered today
For crimping turned contacts. Four-mandrel crimping for top-quality crimping connections. Mandrel gauge to check the basic setting. Repetitive, high crimping quality due to integral lock (self-releasing mechanism). Optimum transmission of force due to highly effective lever action for fatigue-reduced operation. High operation comfort thanks to handy shape. Chrome vanadium electric steel in special quality, oil-hardened Model: Crimping capacity can be adjusted in increments of 0.01 mm. With digital display of the preset crimping capacities and possibility of re-calibration via RESET function with electronic wear monitoring. Adjustment in mm, inches or comparable selection positions according to MIL. Pliers in a plastic case with foam insert and standard locator for precise positioning of the contacts.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | turned contacts | |
| Crimping Range (mm²) | 0.08-2.5 mm² | |
| Crimping Range (AWG) | AWG 28-13 | |
| Length | 195 mm | |
| Weight | 388 g |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
