95 61 150 | Knipex

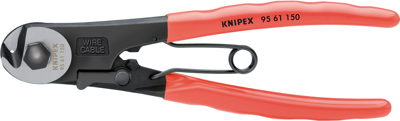

Bowden cable cutter, 150 mm, 205 g, 95 61 150
NCNR (non cancelable / non returnable)
Bowden cable cutter, 95 61 150, Knipex
For Bowden cables and soft wire rope up to 3.0 mm dia. (also V2A). Smooth and clean cutting due to special shape of the cutting edges. Sickle shape cutting edges surround the material and prevent the wire rope fanning out. Little handforce required due to very high transmission ratio. With opening spring and locking device. Cutting edges additionally induction hardened. High-grade special tool steel, forged, multi stage oil-hardened Description: For Bowden cables and soft wire rope up to 3.0 mm dia. (also V2A). Smooth and clean cutting due to special shape of the cutting edges. Sickle shape cutting edges surround the material and prevent the wire rope fanning out. Little handforce required due to very high transmission ratio. With opening spring and locking device. Cutting edges additionally induction hardened.
Technical Data
- Weight: 224 g
- Length: 150 mm
- ESD protection: false
| Filter | Property | Value |
|---|---|---|
| Version | Bowden cable cutter | |
| Length | 150 mm | |
| Weight | 205 g | |
| 1000V Insulated | No |
| Property | Value |
|---|---|
| Customs tariff number | 82033000 |
| Country of origin | JP |
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
