465.N | Kleinhuis
Cable connector, 12 pole, 1.5-4.0 mm², clamping points: 1, natural, screw connection, 465.N
Order No.: 09H100
EAN: 4099891041205
MPN:
465.N
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.4161 € *
Available: 39 pcs.
Available in 5 Days: 8 pcs. - if ordered today
Total Price:
1.42 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4161 €
10 pcs.
1.2852 €
50 pcs.
1.1543 €
100 pcs.
1.0234 €
500 pcs.
0.9282 €
*incl. VAT plus shipping costs
Subject to prior sale

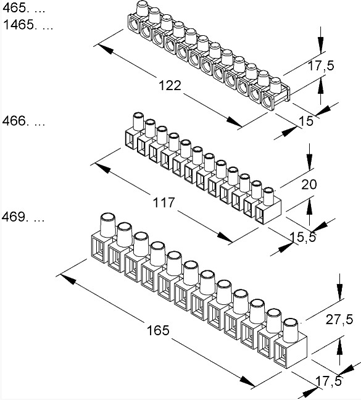

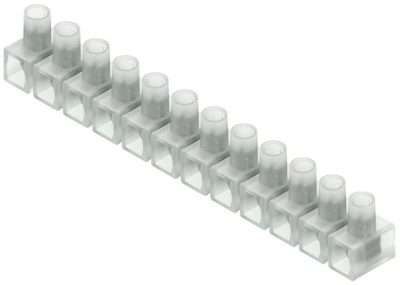

Terminal, type 465.N
This terminal is plain/transparent, 12-pole and splittable.
Insulating material: polyamide PA 6
Clamping bolt: bright brass
Clamping screws: galvanized steel, captive
Rated voltage: 450 V
Test current: 32 A
Rated cross-section: 4.0 mm²
Terminating cross-section: 6 x 1.0/6 x 1.5/4 x 2.5 mm²
Ambient temperatures: max. 85 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | connection clamp | |
| Pin number | 12 pole | |
| Cable cross-section | 1.5-4.0 mm² | |
| Number of terminals | 1 | |
| Colour | natural | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | MK |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
