465.0 | Kleinhuis
Cable connector, 12 pole, 1.5-4.0 mm², clamping points: 1, black, screw connection, 465.0
Order No.: 09H109
EAN: 4099891041212
MPN:
465.0
Unit Price (€ / pc.)
2.2610 € *
Available: 185 pcs.
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2610 €
25 pcs.
1.9278 €
100 pcs.
1.7612 €
250 pcs.
1.6779 €
*incl. VAT plus shipping costs
Subject to prior sale

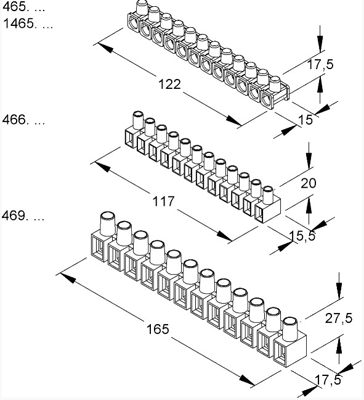

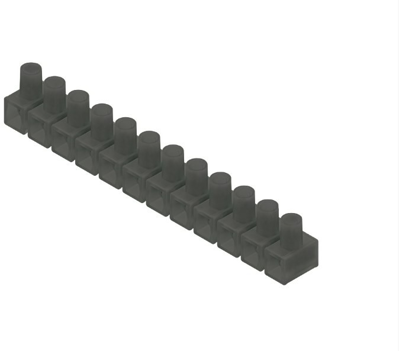

Terminal, type 465.0
This terminal is black, 12-pole and splittable.
Insulating material: polyamide PA 6
Clamping bolt: bright brass
Clamping screws: galvanized steel, captive
Rated voltage: 450 V
Test current: 32 A
Rated cross-section: 4.0 mm²
Terminating cross-section: 6 x 1.0/6 x 1.5/4 x 2.5 mm²
Ambient temperatures: max. 85 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 1.5-4.0 mm² | |
| Connection | screw connection | |
| Number of terminals | 1 | |
| Colour | black | |
| Version | connection clamp | |
| Pin number | 12 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | MK |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
