744/13 | Kleinhuis

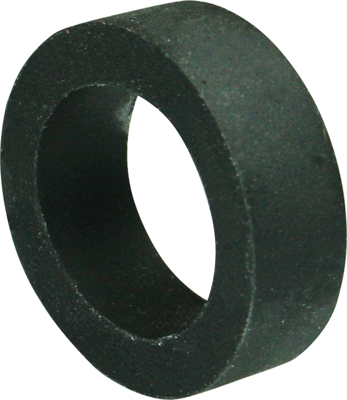

Sealing ring, (W x H) 18.3 x 6 mm, SBR/NBR, black, for PG13.5, 744/13
Order No.: 16N934
EAN: 4099891197438
MPN:
744/13
Unit Price (€ / pc.)
0.3011 € *
Standard delivery time from the manufacturer is: 2 Weeks
Seal rings for cable glands, type 744/.
Compliant with DIN 46320; Material: SBR/NBR (styrene nitrile butadiene rubber). Operating temperatures: –30 to +100 °C.

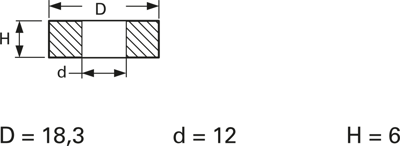

Technical attributes (type, rated size, inner diameter (d), outer diameter (OD), height or sealing ring thickness (H)): 013, seal ring, Pg 13.5, d 12, OD 18.3, H 6.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | SBR/NBR | |
| max. operating temperature | 100 °C | |
| Product type | sealing ring | |
| Height | 6 mm | |
| Width | 18.3 mm | |
| min. operating temperature | -30 °C | |
| Suitable for | PG13.5 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 40169997 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
