744/11 | Kleinhuis

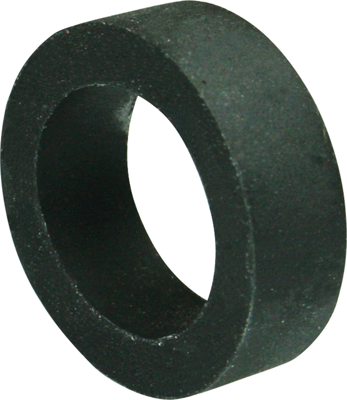

Sealing ring, (W x H) 16.7 x 5.5 mm, SBR/NBR, black, for PG11, 744/11
Order No.: 16N928
EAN: 4099891197421
MPN:
744/11
Unit Price (€ / pc.)
0.2285 € *
Standard delivery time from the manufacturer is: On Request
Seal rings for cable glands, type 744/.
Compliant with DIN 46320; Material: SBR/NBR (styrene nitrile butadiene rubber). Operating temperatures: –30 to +100 °C.

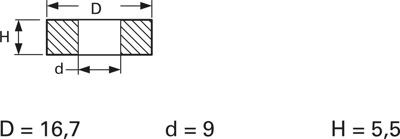

Technical attributes (type, rated size, inner diameter (d), outer diameter (OD), height or sealing ring thickness (H)): 011, seal ring, Pg 11, d 9.0, OD 16.7, H 5.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | SBR/NBR | |
| max. operating temperature | 100 °C | |
| Product type | sealing ring | |
| Height | 5.5 mm | |
| Width | 16.7 mm | |
| min. operating temperature | -30 °C | |
| Suitable for | PG11 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 40091100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
