1603/09 | Kleinhuis

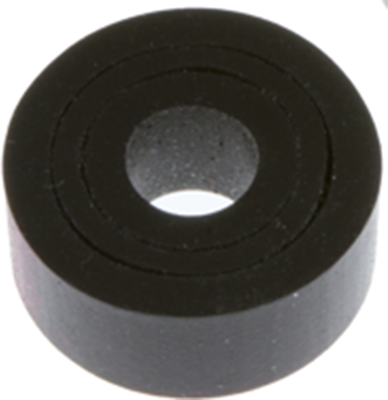

Sealing ring, PG9, Clamping range 5 to 10 mm, black, 1603/09
Order No.: 16N870
EAN: 4099891198961
MPN:
1603/09
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
34.51 € *
Price list
Quantity
Price per unit*
100 pcs.
0.3451 €
500 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale
Cut-out seal rings for cable glands, type 1603.
Compliant with DIN 46320; Material: SBR/NBR (styrene nitrile butadiene rubber). Operating temperatures: –30 to +100 °C.

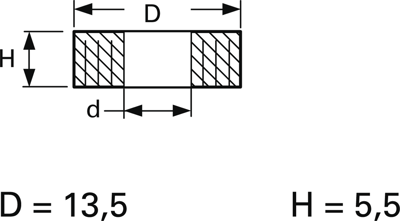

Technical attributes (type, rated size (Pg), inner or notch diameter from/to (Id), outer diameter (OD), height (H)): 1603/09, seal ring, Pg 9, Id 5.0/10, OD 13.5, H 5.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. clamping range | 5 mm | |
| max. clamping range | 10 mm | |
| Colour | black | |
| Product type | sealing ring | |
| Material | SBR/NBR | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -40 °C | |
| Thread size | PG9 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 40169300 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
