MM720 | Klein Tools

TRMS multimeter MM720, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 60 nF to 6000 µF, CAT III 1000 V, CAT IV 600 V

Order No.: 25L0164
EAN: 783423020946
MPN:
MM720
Klein Tools
MM720 Klein Tools Multimeters Image 1
MM720 Klein Tools Multimeters Image 2
MM720 Klein Tools Multimeters Image 3
Image may differ
Print
Key Specification:
Version digital multimeter
TRMS possible Yes
max. measured current value (DC) 10 A
max. measured current value (AC) 10 A
max. voltage measuring range (DC) 1000 V
Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)
110.5510 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
110.55 € *
Price list
Quantity
Price per unit*
1 pcs.
110.5510 €
6 pcs.
99.4959 €
*incl. VAT plus shipping costs
Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance

Multimeter, MM720EU, Klein Tools

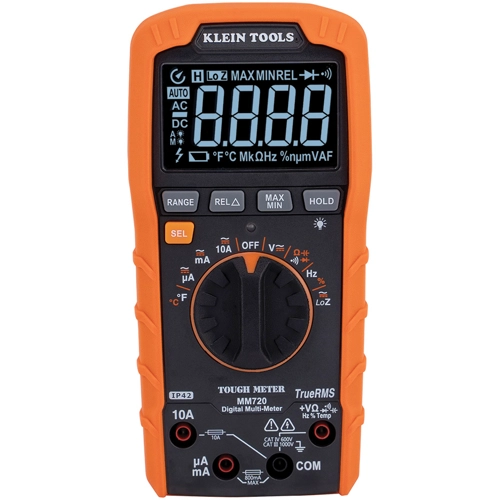

Klein Tools MM720 Multimeter is an automatically ranging true root mean squared (TRMS) digital multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, diodes and continuity. It features a high visibility, reverse contrast LCD display with an optical sensor to automatically optimize viewability in dark or bright ambient lighting.

Features

  • Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
  • Tester measures up to 1000V AC/DC voltage, 10A AC/DC current and 60 MOhms resistance plus temperature, capacitance, frequency, low impedance (LoZ), duty-cycle, test diodes and continuity

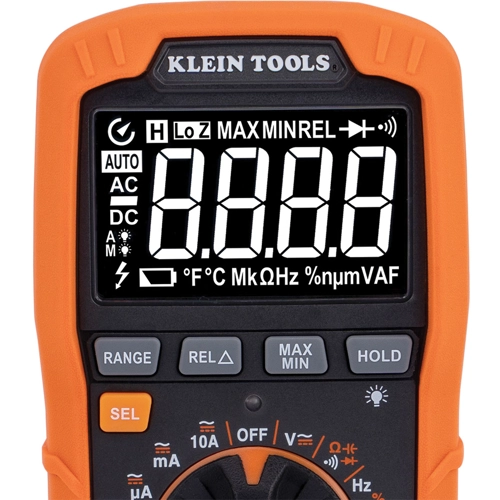

  • High visibility, reverse contrast display with optical sensor to automatically optimize viewability in dark or bright ambient lighting
  • Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
  • Low battery indicator and easily accessible battery and fuse compartment
  • Tough meter built to withstand a 6.6-Foot (2 m) drop and is rated IP42

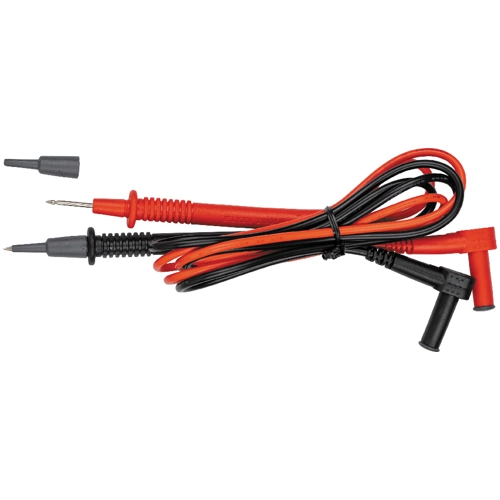

  • Includes carrying pouch, test leads, thermocouple with adapter, and batteries
  • For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
Technical specifications
Version digital multimeter
TRMS possible Yes
max. measured current value (DC) 10 A
max. measured current value (AC) 10 A
max. voltage measuring range (DC) 1000 V
max. voltage measuring range (AC) 1000 V
Capacity range 60 nF to 6000 µF
max. resistance range 60 MΩ
Surge voltage category CAT III 1000 V, CAT IV 600 V
Display Digits 6000
Articles of same specification 0
Logistics
Country of origin CN
Customs tariff number 90303100
Compliance
SVHC free Yes
Electrical equipment take-back Electrical equipment take-back
RoHS conform Yes
Date of RoHS guidelines 3/31/15
