CL800 | Klein Tools
TRMS AC/DC current clamp CL800, 600 A (DC), 600 A (AC), 1000 V (DC), 1000 V (AC), opening 35 mm, CAT IV 600 V
Order No.: 25L0128
EAN: 783423020922
MPN:
CL800
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
160.65 € *
Standard delivery time from the manufacturer is: 1 Week
Clamp Meters, CL800EU, Klein Tools

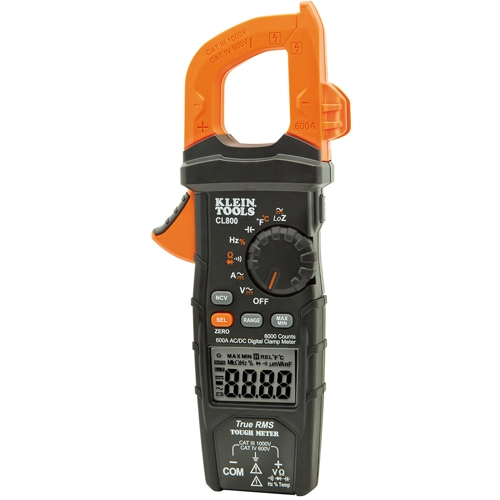

Klein Tools CL800 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools' Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving Features
Features
- Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
- Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
- Thermocouple probe measures temperature
- Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- Built to withstand a 6.6-Foot (2m) drop
- Low battery indicator and easily accessible battery compartment
- Operating altitude to 6562-Foot (2000m)

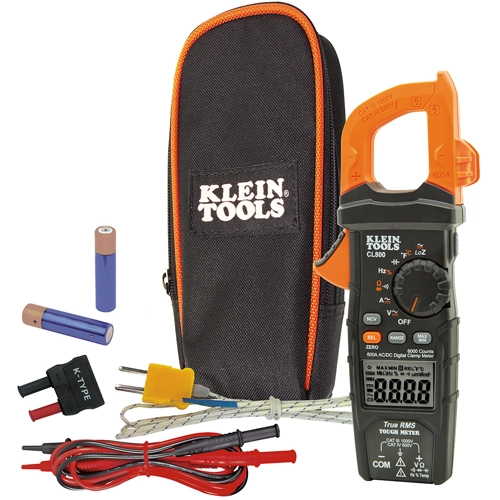

- Includes carrying pouch, test leads, thermocouple with adapter and batteries
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | AC/DC current clamp | |
| Version | IP40 | |
| TRMS possible | Yes | |
| Pliers opening | 35 mm | |
| Surge voltage category | CAT IV 600 V | |
| max. measured current value (DC) | 600 A | |
| max. measured current value (AC) | 600 A | |
| max. voltage measuring range (DC) | 1000 V | |
| max. voltage measuring range (AC) | 1000 V | |
| max. resistance range | 60 MΩ | |
| min. Measured value (frequency) | 1 Hz | |
| max. measured value (frequency) | 500 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90303100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Electrical equipment take-back |  |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
