87310 | Klauke

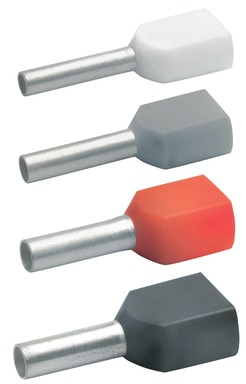

Insulated twin wire end ferrule, 2.5 mm², 18.5 mm/10 mm long, blue, 87310
Order No.: 18H7513
EAN: 4012078047746
MPN:
87310
Unit Price (€ / pc.)
0.0857 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
0.86 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0857 €
50 pcs.
0.0785 €
100 pcs.
0.0726 €
500 pcs.
0.0655 €
1000 pcs.
0.0607 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire end ferrule, 87310, KLAUKE
Insulated twin cable end-sleeves for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6, for looping through terminals. Color coding based on DIN 46228 Part 4 (0.5 - 16 mm²).
Features
- Halogen free
- Tin plated to protect against corrosion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | blue | |
| Pin lenght | 10 mm | |
| Length | 18.5 mm | |
| Contact material | copper | |
| max. operating temperature | 105 °C | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
