8718 | Klauke

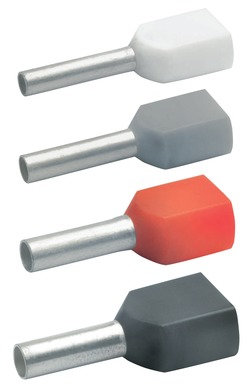

Insulated twin wire end ferrule, 1.0 mm², 15 mm/8 mm long, red, 8718
Order No.: 18H7509
EAN: 4012078023993
MPN:
8718
Unit Price (€ / pc.)
0.1273 € *
Available: 926 pcs.
Total Price:
6.37 € *
Price list
Quantity
Price per unit*
50 pcs.
0.1273 €
100 pcs.
0.1107 €
500 pcs.
0.0964 €
1000 pcs.
0.0821 €
5000 pcs.
0.0666 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire end ferrule, 8718, KLAUKE
Insulated twin cable end-sleeves for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6, for looping through terminals. Color coding based on DIN 46228 Part 4 (0.5 - 16 mm²).
Features
- Halogen free
- Tin plated to protect against corrosion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | red | |
| Pin lenght | 8 mm | |
| Length | 15 mm | |
| Contact material | copper | |
| max. operating temperature | 105 °C | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
