48121 | Klauke

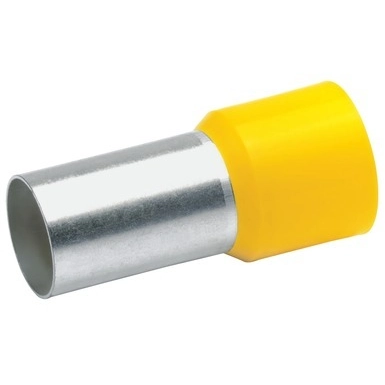

Insulated wire end ferrule, 70 mm², 37 mm/21 mm long, DIN 46228-4, yellow, 48121
Order No.: 18H7492
EAN: 4012078047241
MPN:
48121
Unit Price (€ / pc.)
1.6660 € *
Available: 10 pcs.
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6660 €
10 pcs.
1.5113 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire end ferrule, 48121, KLAUKE
Insulated wire-end according to DIN with Easy-Entry insulation for splice-free cable entry, for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6. Color coding and dimensions according to DIN 46228 Part 4.
Features
- Halogen free
- Tin plated to protect against corrosion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 70 mm² | |
| Isolated | Yes | |
| Colour | yellow | |
| Length | 37 mm | |
| Pin lenght | 21 mm | |
| Standard number | DIN 46228-4 | |
| Contact material | copper | |
| Material Insulation | polypropylene | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
