47822 | Klauke
Insulated wire end ferrule, 25 mm², 36 mm/22 mm long, DIN 46228-4, yellow, 47822
Order No.: 18H7486
EAN: 4012078023900
MPN:
47822
Unit Price (€ / pc.)
0.5474 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
27.37 € *
Price list
Quantity
Price per unit*
50 pcs.
0.5474 €
100 pcs.
0.4641 €
500 pcs.
0.4284 €
1000 pcs.
0.3808 €
5000 pcs.
0.3570 €
*incl. VAT plus shipping costs
Subject to prior sale

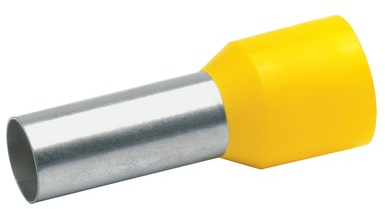

Wire end ferrule, 47822, KLAUKE
Insulated wire-end according to DIN with Easy-Entry insulation for splice-free cable entry, for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6. Color coding and dimensions according to DIN 46228 Part 4.
Features
- Halogen free
- Tin plated to protect against corrosion

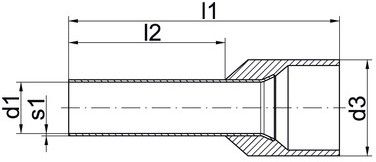

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 25 mm² | |
| Isolated | Yes | |
| Colour | yellow | |
| Length | 36 mm | |
| Pin lenght | 22 mm | |
| Standard number | DIN 46228-4 | |
| Contact material | copper | |
| Material Insulation | polypropylene | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
