43312 | Klauke
Insulated wire end ferrule, 2.5 mm², 21.5 mm/12 mm long, blue, 43312
Order No.: 18H7499
EAN: 4012078449458
MPN:
43312
Unit Price (€ / pc.)
0.2380 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
23.80 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2380 €
500 pcs.
0.2142 €
1000 pcs.
0.1809 €
5000 pcs.
0.1464 €
*incl. VAT plus shipping costs
Subject to prior sale

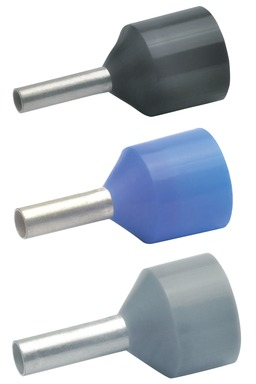

Wire end ferrule, 43312, KLAUKE
Insulated wire-end ferrule for short circuit protected conductors for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6, for short-circuit-proof lines (according NSGAFÖU). Contains Easy-Entry insulation for easy cable entry.
Features
- Halogen free
- Tin plated to protect against corrosion
- Color-coded cross-section assignment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material Insulation | polypropylene | |
| max. operating temperature | 105 °C | |
| Length | 21.5 mm | |
| Colour | blue | |
| Isolated | Yes | |
| Contact material | copper | |
| Pin lenght | 12 mm | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
