17712 | Klauke
Insulated wire end ferrule, 16 mm², 24 mm/12 mm long, DIN 46228-4, ivory, 17712
Order No.: 18H7056
EAN: 4099889616927
MPN:
17712
Unit Price (€ / pc.)
0.2523 € *
Available: 44 pcs.
Total Price:
2.52 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2523 €
100 pcs.
0.2213 €
500 pcs.
0.1987 €
1000 pcs.
0.1714 €
5000 pcs.
0.1404 €
*incl. VAT plus shipping costs
Subject to prior sale

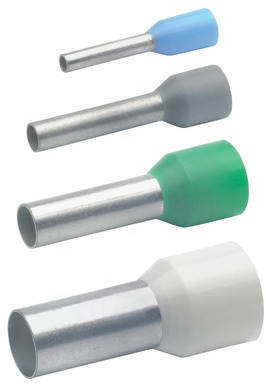

Wire end ferrule, 17712, Klauke
Insulated wire-end ferrule to DIN with Easy-Entry insulation for splice-free cable entry, colour code 2, for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6.
Features
- Halogen free
- Tin plated to protect against corrosion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 16 mm² | |
| Isolated | Yes | |
| Colour | ivory | |
| Length | 24 mm | |
| Pin lenght | 12 mm | |
| Standard number | DIN 46228-4 | |
| Contact material | copper | |
| Material Insulation | polypropylene | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
