174GRH | Klauke
Insulated wire end ferrule, 4.0 mm², 20 mm/12 mm long, DIN 46228-4, gray, 174GRH
Order No.: 18H7447
EAN: 4012078078788
MPN:
174GRH
Unit Price (€ / pc.)
0.1321 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.21 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1321 €
500 pcs.
0.1154 €
1000 pcs.
0.0976 €
5000 pcs.
0.0809 €
*incl. VAT plus shipping costs
Subject to prior sale

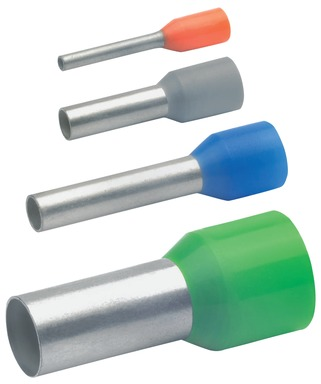

Wire end ferrule, 174GRH, KLAUKE
Insulated wire-end ferrule to DIN with Easy-Entry insulation for splice-free cable entry, colour code 1, for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6.
Features
- Halogen free
- Tin plated to protect against corrosion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 4.0 mm² | |
| Isolated | Yes | |
| Colour | gray | |
| Length | 20 mm | |
| Pin lenght | 12 mm | |
| Standard number | DIN 46228-4 | |
| Contact material | copper | |
| Material Insulation | polypropylene | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
