1716 | Klauke
Insulated wire end ferrule, 1.0 mm², 12 mm/6 mm long, DIN 46228-4, red, 1716
Order No.: 18H7399
EAN: 4012078023443
MPN:
1716
Unit Price (€ / pc.)
0.0512 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
51.17 € *
Price list
Quantity
Price per unit*
1000 pcs.
0.0512 €
5000 pcs.
0.0417 €
*incl. VAT plus shipping costs
Subject to prior sale

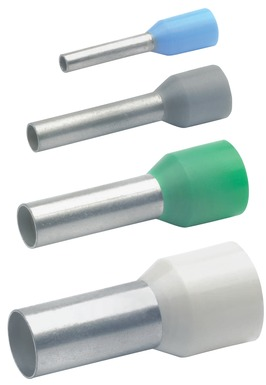

Wire end ferrule, 1716, KLAUKE
Insulated wire-end ferrule to DIN with Easy-Entry insulation for splice-free cable entry, colour code 2, for fine and superfine stranded conductors, according to DIN EN 60228 Cl. 5 and 6.
Features
- Halogen free
- Tin plated to protect against corrosion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 1.0 mm² | |
| Isolated | Yes | |
| Colour | red | |
| Length | 12 mm | |
| Pin lenght | 6 mm | |
| Standard number | DIN 46228-4 | |
| Contact material | copper | |
| Material Insulation | polypropylene | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
