2220 | Klauke

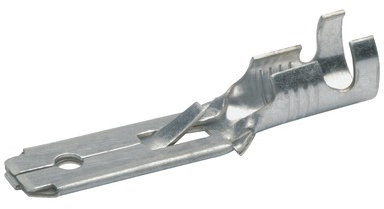

Faston plug, 6.3 x 0.8 mm, L 28 mm, uninsulated, straight, 0.5-1.0 mm², AWG 20-17, 2220
Order No.: 05F446
EAN: 4012078026130
MPN:
2220
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.2475 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.25 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2475 €
10 pcs.
0.2297 €
25 pcs.
0.2154 €
50 pcs.
0.1952 €
*incl. VAT plus shipping costs
Subject to prior sale
Non-insulated flat plug, 2220, KLAUKE
Non-insulated flat plug, 6.3x0.8 mm, length: 28 mm, material: brass, electrotinned, nominal cross section: 0.5 to 1.0 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | faston plug | |
| Design | straight | |
| Plug width x plug thickness | 6.3 x 0.8 mm | |
| Length | 28 mm | |
| Material | brass, tin-plated | |
| Isolated | No | |
| Cable cross-section | 0.5-1.0 mm² | |
| AWG cross-section | AWG 20-17 | |
| Connection | crimp connection | |
| Nominal size according to DIN | DIN 46343 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
