ST1721 | Klauke

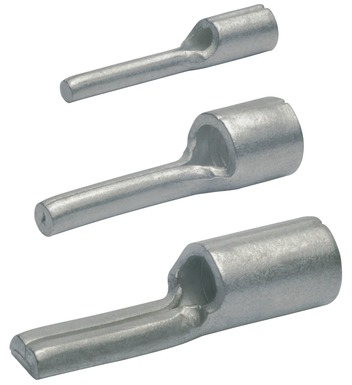

Uninsulated pin cable lug, 70 mm², 11.2 mm, metal, ST1721
Order No.: 07F2015
EAN: 4012078022927
MPN:
ST1721
Unit Price (€ / pc.)
3.7961 € *
Available: 20 pcs.
Total Price:
3.80 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7961 €
10 pcs.
3.5224 €
50 pcs.
3.2487 €
100 pcs.
2.9512 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 4012078022927, KLAUKE
Non-insulated pin terminal with grooved profile for improved contact characteristics. Hard soldered in crimping area.
Features
- High-quality brazing process in the crimp area
- Improved contact properties due to grooved profile
- Tin-plated to protect against corrosion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | metal | |
| Isolated | No | |
| Pin diameter | 11.2 mm | |
| Cable cross-section | 70 mm² | |
| Nominal size according to DIN | DIN 60228 | |
| Material | copper, tin-plated | |
| Version | pin cable lug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
