ST1718 | Klauke

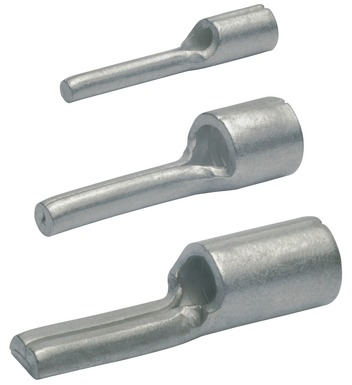

Uninsulated pin cable lug, 25 mm², 6.7 mm, metal, ST1718
Order No.: 07F2012
EAN: 4012078022897
MPN:
ST1718
Unit Price (€ / pc.)
2.4633 € *
Available: 548 pcs.
Total Price:
2.46 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4633 €
10 pcs.
2.2134 €
50 pcs.
1.9992 €
100 pcs.
1.7969 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 4012078022897, KLAUKE
Non-insulated pin terminal with grooved profile for improved contact characteristics. Hard soldered in crimping area.
Features
- High-quality brazing process in the crimp area
- Improved contact properties due to grooved profile
- Tin-plated to protect against corrosion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | metal | |
| Isolated | No | |
| Pin diameter | 6.7 mm | |
| Cable cross-section | 25 mm² | |
| Nominal size according to DIN | DIN 60228 | |
| Material | copper, tin-plated | |
| Version | pin cable lug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
