SR108 | Klauke
Uninsulated tube cable lug, 10 mm², 8.5 mm, M8, SR108
Order No.: 07F1341
EAN: 4012078482813
MPN:
SR108
Unit Price (€ / pc.)
1.1305 € *
Standard delivery time from the manufacturer is: On Request

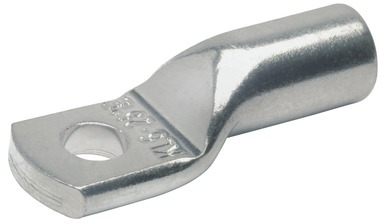

Tubular cable lug, SR108, Klauke
Tubular cable lug for single-stranded round conductors and pre-rounded sector shaped conductors.
Features
- Safe and secure connecting of solid conductors
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Tin-plated to protect against corrosion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 10 mm² | |
| Thread size | M8 | |
| Isolated | No | |
| Material | copper, tin-plated | |
| Nominal size according to DIN | DIN 60228 | |
| Version | tube cable lug | |
| shrinkable tubing | No | |
| Hole diameter | 8.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85359000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
