94R8 | Klauke
Uninsulated tube cable lug, 4.0 mm², AWG 12, 8.5 mm, M8, metal, 94R8
Order No.: 07F2052
EAN: 4012078001755
MPN:
94R8
Unit Price (€ / pc.)
1.3447 € *
Available: 50 pcs.
Total Price:
1.34 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3447 €
10 pcs.
1.2138 €
50 pcs.
1.0829 €
100 pcs.
0.9758 €
*incl. VAT plus shipping costs
Subject to prior sale

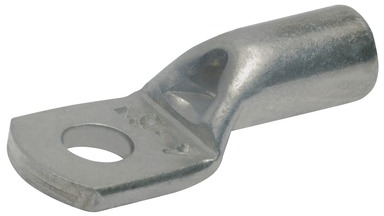

Tubular cable lug, 94R8, Klauke
Tubular cable lug 4.0 mm², M8. Suitable for fine-stranded round conductors with simple processing thanks to inspection hole for monitoring full conductor insertion. Made from copper.
Features
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Reliable assignment owed to item designation on the cable lug
- Tin plated to protect against corrosion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 | |
| Nominal size according to DIN | DIN 60228 | |
| Colour | metal | |
| Material | copper, tin-plated | |
| Isolated | No | |
| Thread size | M8 | |
| Hole diameter | 8.5 mm | |
| shrinkable tubing | No | |
| Version | tube cable lug | |
| Cable cross-section | 4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
