94R5 | Klauke
Uninsulated tube cable lug, 4.0 mm², AWG 12, 5.3 mm, M5, metal, 94R5
Order No.: 07F2050
EAN: 4012078001717
MPN:
94R5
Unit Price (€ / pc.)
0.5593 € *
Available: 51 pcs.
Total Price:
5.59 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5593 €
50 pcs.
0.5117 €
100 pcs.
0.4522 €
500 pcs.
0.4046 €
1000 pcs.
0.3570 €
*incl. VAT plus shipping costs
Subject to prior sale

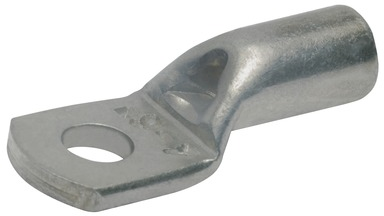

Tubular cable lug, 94R5, Klauke
Tubular cable lug 4.0 mm², M5. Suitable for fine-stranded round conductors with simple processing thanks to inspection hole for monitoring full conductor insertion. Made from copper.
Features
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Reliable assignment owed to item designation on the cable lug
- Tin plated to protect against corrosion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | M5 | |
| shrinkable tubing | No | |
| Isolated | No | |
| Hole diameter | 5.3 mm | |
| Cable cross-section | 4.0 mm² | |
| Material | copper, tin-plated | |
| Version | tube cable lug | |
| Colour | metal | |
| AWG cross-section | AWG 12 | |
| Nominal size according to DIN | DIN 60228 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
