8SG10 | Klauke

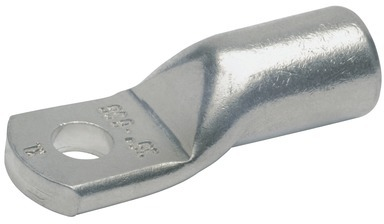

Uninsulated tube cable lug, 95 mm², 10.5 mm, M10
Order No.: 07F1020
EAN: 4012078470612
MPN:
8SG10
Unit Price (€ / pc.)
8.925 € *
Available: 0 pcs.
Leadtime: On Request **
Tubular cable lug, 8SG10, Klauke
Tubular cable lug for switch cabinet connections.
Features
- Narrow design due to special manufacturing proces without material loss
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Tin-plated to protect against corrosion
- For fastening within switch cabinets with reduced connecting space
Applications
- Pre-rounded multi-stranded sector shaped conductors
- Multi-stranded round conductors
Technical specifications
| Version | tube cable lug | |
| Thread size | M10 | |
| Isolated | No | |
| Cable cross-section | 95 mm² | |
| Hole diameter | 10.5 mm | |
| Material | copper, tin-plated | |
| Nominal size according to DIN | DIN 60228 | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85359000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
