705 | Klauke
Insulated pin cable lug, 0.5-1.0 mm², AWG 20 to 18, 1.9 mm, red, 705
Order No.: 07F6742
EAN: 4012078001052
MPN:
705
Unit Price (€ / pc.)
0.7140 € *
Available: 225 pcs.
Total Price:
0.71 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7140 €
10 pcs.
0.6426 €
50 pcs.
0.5712 €
100 pcs.
0.4879 €
*incl. VAT plus shipping costs
Subject to prior sale

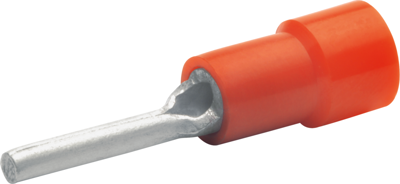

Pin cable lugs, insulated, type Klauke 7.
Made of tinned electrolytic copper
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Nominal size according to DIN | 1.0 | |
| Material | copper, tin-plated | |
| Pin diameter | 1.9 mm | |
| AWG cross-section | AWG 20 to 18 | |
| max. operating temperature | 105 °C | |
| Isolated | Yes | |
| Material Insulation | PA | |
| Colour | red | |
| Version | pin cable lug | |
| Cable cross-section | 0.5-1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
