704 | Klauke

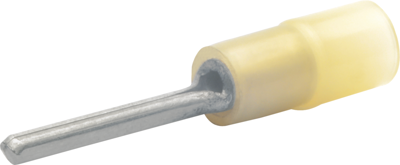

Insulated pin cable lug, 0.1-0.4 mm², AWG 28 to 21, 1.4 mm, yellow, 704
Order No.: 07F6741
EAN: 4012078047432
MPN:
704
Unit Price (€ / pc.)
0.5355 € *
Available: 100 pcs.
Next delivery: 100 pcs. on 2025-09-19
Total Price:
53.55 € *
Price list
Quantity
Price per unit*
100 pcs.
0.5355 €
500 pcs.
0.5117 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin cable lugs, insulated, type Klauke 7.
Made of tinned electrolytic copper
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| Colour | yellow | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 0.1-0.4 mm² | |
| Version | pin cable lug | |
| Material | copper, tin-plated | |
| Material Insulation | PA | |
| AWG cross-section | AWG 28 to 21 | |
| Pin diameter | 1.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
