650C6 | Klauke
Insulated forked cable lug, 4.0-6.0 mm², AWG 12 to 10, 6.5 mm, M6, yellow, 650C6
Order No.: 07F918
EAN: 4012078001045
MPN:
650C6
Unit Price (€ / pc.)
0.7378 € *
Available: 68 pcs.
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7378 €
10 pcs.
0.7021 €
50 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale

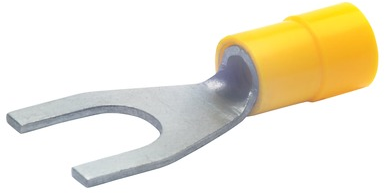

Insulated solderless terminal, 650C6, Klauke
Insulated solderless terminal, fork type, material: Copper, tin-plated, insulation sleeve: PA (halogen-free), temperature resistance: up to 105 °C, nominal cross-section: 4.0 to 6.0 mm², colour: yellow.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 to 10 | |
| Thread size | M6 | |
| Version | forked cable lug | |
| Material Insulation | PA | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C | |
| Hole diameter | 6.5 mm | |
| Isolated | Yes | |
| Nominal size according to DIN | 6-6 | |
| Colour | yellow | |
| Cable cross-section | 4.0-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
