650C4 | Klauke

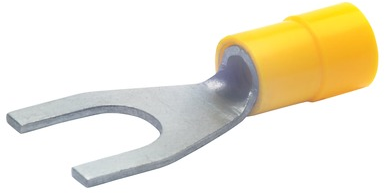

Insulated forked cable lug, 4.0-6.0 mm², AWG 12 to 10, 4.3 mm, M4, yellow, 650C4
Order No.: 07F914
EAN: 4012078001021
MPN:
650C4
Unit Price (€ / pc.)
0.7259 € *
Available: 193 pcs.
Total Price:
7.26 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7259 €
50 pcs.
0.6545 €
100 pcs.
0.5593 €
500 pcs.
0.4998 €
1000 pcs.
0.4165 €
*incl. VAT plus shipping costs
Subject to prior sale
Insulated solderless terminal, 650C4, Klauke
Insulated solderless terminal, fork type, material: Copper, tin-plated, insulation sleeve: PA (halogen-free), temperature resistance: up to 105 °C, nominal cross-section: 4.0 to 6.0 mm², colour: yellow.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 to 10 | |
| Hole diameter | 4.3 mm | |
| Colour | yellow | |
| Thread size | M4 | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Nominal size according to DIN | 4-6 | |
| Cable cross-section | 4.0-6.0 mm² | |
| Material | copper, tin-plated | |
| Version | forked cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
