630C35 | Klauke

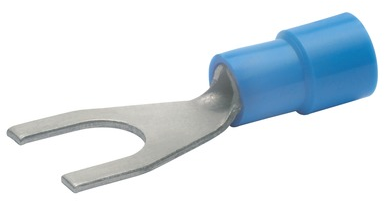

Insulated forked cable lug, 1.5-2.5 mm², AWG 16 to 14, 3.7 mm, blue, 630C35
Order No.: 07F907
EAN: 4012078024631
MPN:
630C35
Unit Price (€ / pc.)
0.3689 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
7.38 € *
Price list
Quantity
Price per unit*
20 pcs.
0.3689 €
50 pcs.
0.3332 €
100 pcs.
0.3058 €
500 pcs.
0.2773 €
1000 pcs.
0.2475 €
*incl. VAT plus shipping costs
Subject to prior sale
Insulated solderless terminal, 630C35, Klauke
Insulated solderless terminal, fork type, material: Copper, tin-plated, insulation sleeve: PA (halogen-free), temperature resistance: up to 105 °C, nominal cross-section: 1.5 to 2.5 mm², colour: blue.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | blue | |
| Hole diameter | 3.7 mm | |
| Nominal size according to DIN | 3.5-2.5 | |
| AWG cross-section | AWG 16 to 14 | |
| max. operating temperature | 105 °C | |
| Material | copper, tin-plated | |
| Material Insulation | PA | |
| Version | forked cable lug | |
| Isolated | Yes | |
| Cable cross-section | 1.5-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
