6305 | Klauke

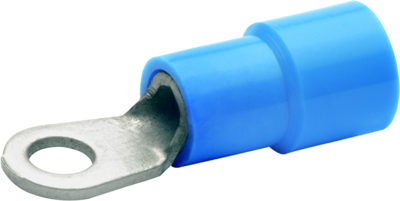

Insulated ring cable lug, 1.5-2.5 mm², AWG 16 to 14, 5.3 mm, M5, blue, 6305
Order No.: 07F942
EAN: 4012078000826
MPN:
6305
Unit Price (€ / pc.)
0.4760 € *
Available: 2,299 pcs.
Total Price:
9.52 € *
Price list
Quantity
Price per unit*
20 pcs.
0.4760 €
50 pcs.
0.4522 €
100 pcs.
0.4284 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lugs, spade tongue, not insulated, type Klauke 6.
Made of tinned electrolytic copper
For rated cross-section 1.5 to 2.5 mm², type 630.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| AWG cross-section | AWG 16 to 14 | |
| Nominal size according to DIN | DIN 46237 | |
| Colour | blue | |
| Material | copper, tin-plated | |
| Isolated | Yes | |
| Thread size | M5 | |
| Hole diameter | 5.3 mm | |
| Version | ring cable lug | |
| Cable cross-section | 1.5-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
