6204 | Klauke

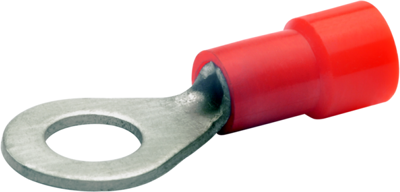

Insulated ring cable lug, 0.5-1.0 mm², AWG 20 to 18, 4.3 mm, M4, red, 6204
Order No.: 07F934
EAN: 4012078000796
MPN:
6204
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
3.81 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3808 €
100 pcs.
0.3332 €
500 pcs.
0.2927 €
1000 pcs.
0.2570 €
5000 pcs.
0.1845 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lugs, spade tongue, not insulated, type Klauke 6.
Made of tinned electrolytic copper
For rated cross-section 0.5 to 1.0 mm², type 620.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 105 °C | |
| Hole diameter | 4.3 mm | |
| Isolated | Yes | |
| Material | copper, tin-plated | |
| Colour | red | |
| Nominal size according to DIN | 4-1 | |
| Thread size | M4 | |
| AWG cross-section | AWG 20 to 18 | |
| Cable cross-section | 0.5-1.0 mm² | |
| Version | ring cable lug | |
| Material Insulation | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
