47R1245 | Klauke
Uninsulated angled tube cable lug, 70 mm², 13 mm, M12, 47R1245
Order No.: 07F1172
EAN: 4012078467667
MPN:
47R1245
Unit Price (€ / pc.)
4.0460 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0460 €
10 pcs.
3.6414 €
50 pcs.
3.2725 €
100 pcs.
2.9512 €
*incl. VAT plus shipping costs
Subject to prior sale

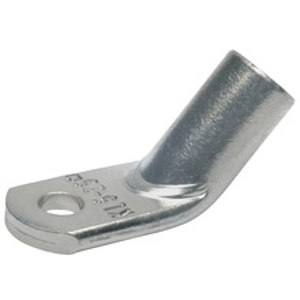

Angled tubular cable lug, 47R1245, Klauke
Angled tubular cable lug for multi-stranded round conductors and pre-rounded multi-stranded sector shaped conductors.
Features
- Flat contact surface by special angle pressing technology
- Annealed material optimises material and crimping properties
- Simple cable entry due to precise internal chamfer
- Tin-plated to protect against corrosion
- Reliable assignment owed to item designation on the cable lug
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Nominal size according to DIN | DIN 60228 | |
| Material | copper, tin-plated | |
| Isolated | No | |
| Thread size | M12 | |
| Hole diameter | 13 mm | |
| shrinkable tubing | No | |
| Version | angled tube cable lug | |
| Cable cross-section | 70 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85359000 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
