3R5MS | Klauke
Uninsulated tube cable lug, 16 mm², AWG 6, 5.5 mm, M5, metal, 3R5MS
Order No.: 07F9752
EAN: 4012078466080
MPN:
3R5MS
Unit Price (€ / pc.)
1.2257 € *
Next delivery: 56 pcs. on 2025-11-14
Total Price:
12.26 € *
Price list
Quantity
Price per unit*
10 pcs.
1.2257 €
50 pcs.
1.0829 €
250 pcs.
0.9401 €
1000 pcs.
0.8330 €
2500 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale

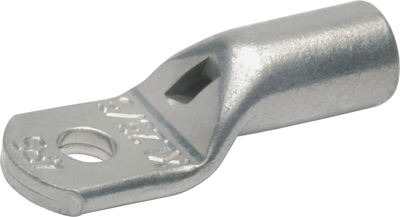

Tubular cable lug, 3R5MS, Klauke
Tubular cable lug with inspection hole, bolt size: M5, nominal cross-section: 16 mm², material: copper, tin-plated, hole diameter: 5.5 mm, approvals: cULus.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Nominal size according to DIN | DIN 61373 | |
| Material | copper, tin-plated | |
| Thread size | M5 | |
| AWG cross-section | AWG 6 | |
| Isolated | No | |
| Hole diameter | 5.5 mm | |
| Colour | metal | |
| Version | tube cable lug | |
| Cable cross-section | 16 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
