1R6MS | Klauke
Uninsulated tube cable lug, 6.0 mm², AWG 10, 6.5 mm, M6, metal, 1R6MS
Order No.: 07F9742
EAN: 4012078466028
MPN:
1R6MS
Unit Price (€ / pc.)
0.7140 € *
Available: 80 pcs.
Total Price:
0.71 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7140 €
10 pcs.
0.6545 €
50 pcs.
0.5474 €
100 pcs.
0.5117 €
500 pcs.
0.4641 €
*incl. VAT plus shipping costs
Subject to prior sale

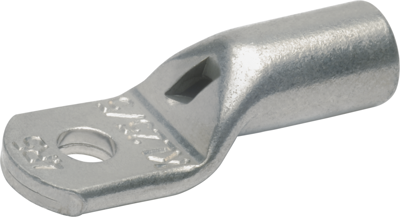

Tubular cable lug, 1R6MS, Klauke
Tubular cable lug with inspection hole, bolt size: M6, nominal cross-section: 6.0 mm², material: copper, tin-plated, hole diameter: 6.5 mm, approvals: cULus.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 10 | |
| Colour | metal | |
| Material | copper, tin-plated | |
| Isolated | No | |
| Thread size | M6 | |
| Hole diameter | 6.5 mm | |
| Version | tube cable lug | |
| Cable cross-section | 6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
