13SG16 | Klauke

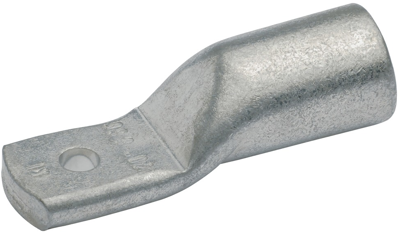

Uninsulated tube cable lug, 300 mm², 17 mm, M16
Order No.: 07F1055
EAN: 4012078470483
MPN:
13SG16
Unit Price (€ / pc.)
24.2046 € *
Available: 0 pcs.
Leadtime: On Request **
Tubular cable lug, 13SG16, Klauke
Tubular cable lug for switch cabinet connections.
Features
- Narrow design due to special manufacturing proces without material loss
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Tin-plated to protect against corrosion
- For fastening within switch cabinets with reduced connecting space
Applications
- Pre-rounded multi-stranded sector shaped conductors
- Multi-stranded round conductors
Technical specifications
| Version | tube cable lug | |
| Thread size | M16 | |
| Isolated | No | |
| Cable cross-section | 300 mm² | |
| Hole diameter | 17 mm | |
| Material | copper, tin-plated | |
| Nominal size according to DIN | DIN 60228 | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85359000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
