TV16 | Klauke
T connector, uninsulated, 16 mm², metal, 50 mm, TV16
Order No.: 07F1227
EAN: 4012078475464
MPN:
TV16
Unit Price (€ / pc.)
6.6878 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
6.69 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6878 €
10 pcs.
6.0214 €
50 pcs.
5.4145 €
100 pcs.
4.8790 €
*incl. VAT plus shipping costs
Subject to prior sale

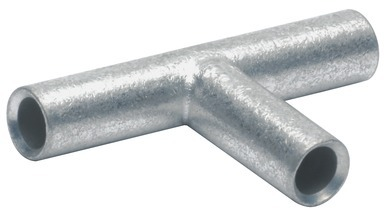

T-connector, TV16, Klauke
T-connector for multi-stranded round conductors and pre-rounded multi-stranded sector shaped conductors.
Features
- With reducting sleeves also suitable for connecting different cross-sections
- Annealed material optimises material and crimping properties
- Simple cable entry due to internal chamfer
- Tin-plated to protect against corrosion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | metal | |
| Length | 50 mm | |
| Material | copper, tin-plated | |
| Version | T-connector | |
| Isolated | No | |
| Cable cross-section | 16 mm² | |
| shrinkable tubing | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Customs tariff number | 85359000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
