TV120 | Klauke
T connector, uninsulated, 120 mm², metal, 95 mm, TV120
Order No.: 07F1233
EAN: 4012078475433
MPN:
TV120
Unit Price (€ / pc.)
19.9325 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
19.93 € *
Price list
Quantity
Price per unit*
1 pcs.
19.9325 €
5 pcs.
18.9091 €
10 pcs.
17.6834 €
25 pcs.
16.1245 €
*incl. VAT plus shipping costs
Subject to prior sale

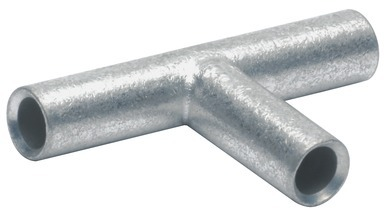

T-connector, TV120, Klauke
T-connector for multi-stranded round conductors and pre-rounded multi-stranded sector shaped conductors.
Features
- With reducting sleeves also suitable for connecting different cross-sections
- Annealed material optimises material and crimping properties
- Simple cable entry due to internal chamfer
- Tin-plated to protect against corrosion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | T-connector | |
| Cable cross-section | 120 mm² | |
| Isolated | No | |
| Colour | metal | |
| Material | copper, tin-plated | |
| shrinkable tubing | No | |
| Length | 95 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Customs tariff number | 85359000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
