KV4 | Klauke

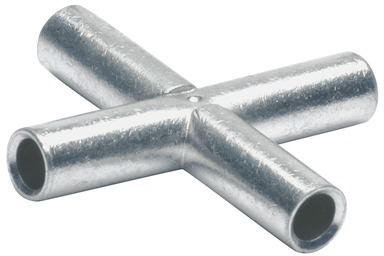

Cross connector, uninsulated, 4.0 mm², metal, 30 mm, KV4
Order No.: 07F1238
EAN: 4012078475679
MPN:
KV4
Unit Price (€ / pc.)
4.2840 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
4.28 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2840 €
10 pcs.
3.8556 €
50 pcs.
3.4748 €
100 pcs.
3.1297 €
*incl. VAT plus shipping costs
Subject to prior sale
Cross-connector, KV4, Klauke
Cross-connector for multi-stranded round conductors and pre-rounded multi-stranded sector shaped conductors.
Features
- With reducting sleeves also suitable for connecting different cross-sections
- Annealed material optimises material and crimping properties
- Simple cable entry due to internal chamfer
- Tin-plated to protect against corrosion
Technical specifications
| Colour | metal | |
| Material | copper, tin-plated | |
| Version | cross connector | |
| Length | 30 mm | |
| Isolated | No | |
| Cable cross-section | 4.0 mm² | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85359000 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
