726F | Klauke
Butt connector, uninsulated, 50 mm², metal, 45 mm, 726F
Order No.: 07F1542
EAN: 4012078425629
MPN:
726F
Unit Price (€ / pc.)
4.5934 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
4.59 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5934 €
10 pcs.
4.1293 €
50 pcs.
3.7247 €
100 pcs.
3.3439 €
*incl. VAT plus shipping costs
Subject to prior sale

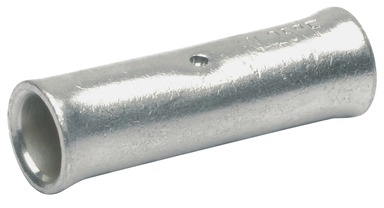

Butt connector, 726F, Klauke
Butt connector for fine and superfine stranded round conductors.
Features
- Tube dimension suitable for fine and superfine stranded conductors
- Simple insertion of spliced conductors due to special-widening
- Simple and safe processing due to butt mark
- Annealed material optimises material and crimping properties
- Simple cable entry due to precise internal chamfer
- Reliable tool selection by matching code indication on the butt connector
- Tin-plated to protect against corrosion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| shrinkable tubing | No | |
| Isolated | No | |
| Length | 45 mm | |
| Colour | metal | |
| Cable cross-section | 50 mm² | |
| Material | copper, tin-plated | |
| Version | butt connector |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Customs tariff number | 85359000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
