6B | Klauke
Butt connector, uninsulated, 6.0 mm², metal, 25 mm, 6B
Order No.: 07F1325
EAN: 4012078799430
MPN:
6B
Unit Price (€ / pc.)
0.5593 € *
Standard delivery time from the manufacturer is: On Request

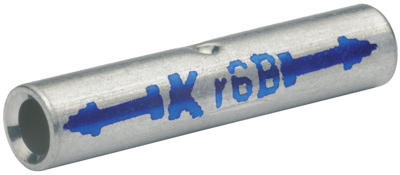

Butt connector, 6B, Klauke
Butt connector for compacted, multi-stranded round conductors.
Features
- Accurate assignment of crimping tool/crimping die through colour-coding system
- Less crimpings due to max. crimping width
- Reduced costs due to compact dimensions
- Processing without use of additional sleeves
- Annealed material optimises material and crimping properties
- Reliable tool selection by matching code indication on the butt connector
- Simple cable entry due to precise internal chamfer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 25 mm | |
| Colour | metal | |
| Material | copper, tin-plated | |
| Isolated | No | |
| shrinkable tubing | No | |
| Version | butt connector | |
| Cable cross-section | 6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
