628R | Klauke

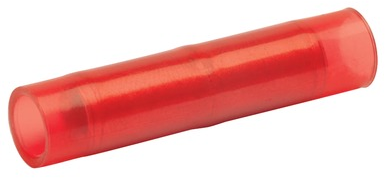

Butt connectorwith insulation, 95 mm², red, 87 mm, 628R
Order No.: 07F2006
EAN: 4012078475846
MPN:
628R
Unit Price (€ / pc.)
4.6529 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
4.65 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6529 €
10 pcs.
4.1888 €
50 pcs.
3.7723 €
100 pcs.
3.3915 €
*incl. VAT plus shipping costs
Subject to prior sale
Insulated butt connector, 628R, Klauke
Insulated butt connector, Cu, standard type for multi-stranded round conductors, e.g. to DIN EN 60228 Cl. 2, for pre-rounded multi-stranded sector shaped conductors. It is directly crimped with the insulation and no additional insulation of the crimped connection required.
Features
- With buttmarks for precise cable insertion
- Annealed material optimises material and crimping properties
- Simple cable entry due to internal chamfer
- Heat resistant to 105° C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| shrinkable tubing | No | |
| Material | copper, tin-plated | |
| Isolated | Yes | |
| Length | 87 mm | |
| Colour | red | |
| Version | butt connector | |
| Cable cross-section | 95 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
