K0571.01500655 | Kipp
Rubber/metal bumpers with outer threads, straight, D 15, H 6.0 mm, G M4, L 10 mm, K0571.01500655
Unit Price (€ / pc.)
1.3090 € *
Available: 116 pcs.
Total Price:
1.31 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3090 €
10 pcs.
1.1900 €
100 pcs.
1.0710 €
500 pcs.
0.9520 €
1000 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale

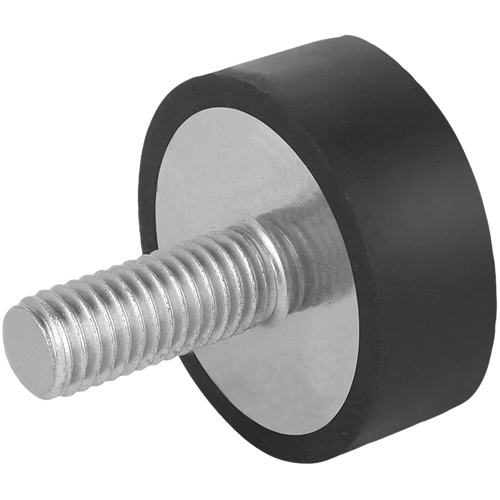

Rubber buffer, K0571.01500655, Kipp
The K0571.01500655 is a type D cylindrical rubber buffer steel with external thread. This rubber buffer is used, among other things for mounting aggregate and as elastic buffer to limit the travel of moving masses.

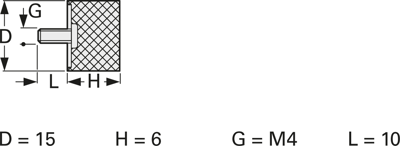

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | elastomer natural rubber, galvanized steel | |
| Shaft length | 10 mm | |
| Thread size | M4 | |
| max. operating temperature | 80 °C | |
| Type of mounting | M4 | |
| Length | 10 mm | |
| Height | 6 mm | |
| min. operating temperature | -30 °C | |
| Colour | black | |
| Outer diameter | 15 mm | |
| Version | rubber metal buffer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 40169991 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
