K0568.01001055 | Kipp

Rubber/metal bumpers with outer/inner threads, straight, D 10, H 10 mm, G M4, L 10, T 4.0 mm, K0568.01001055

Order No.: 20H1822
EAN: 4059245177189
MPN:
K0568.01001055
152852
Series: K0568

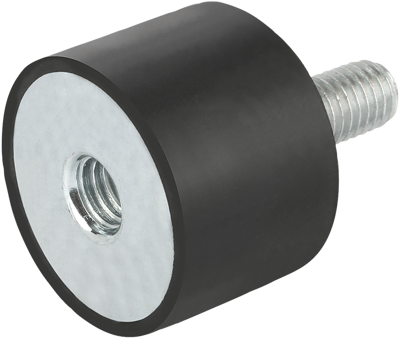

K0568.01001055 Kipp Vibration Damper Image 1

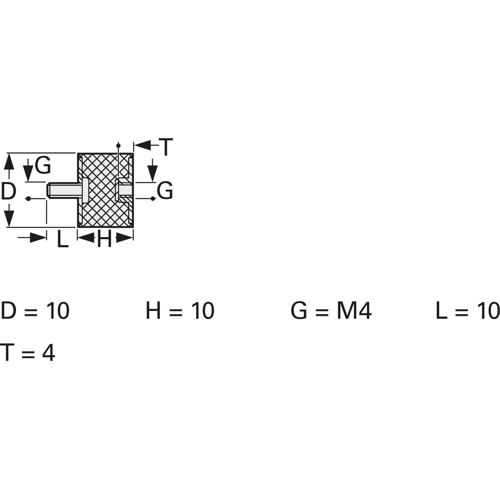

K0568.01001055 Kipp Vibration Damper Image 2
Image may differ
Unit Price (€ / pc.)
1.5232 € *
Available: 59 pcs.
Total Price:
1.52 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5232 €
10 pcs.
1.3804 €
100 pcs.
1.2376 €
500 pcs.
1.1067 €
1000 pcs.
0.9996 €
*incl. VAT plus shipping costs
Subject to prior sale

Rubber buffer, K0568.01001055, Kipp

The K0568.01001055 is a type B cylindrical rubber buffer steel with external thread and internal thread. This rubber buffer is widely-used construction element for elastic mounting. It is used, among other things, as mountings for aggregates, motors, compressors, pumps and testing machinery.

Technical specifications
Filter Property Value
min. operating temperature -30 °C
Thread size M4
Outer diameter 10 mm
Version rubber metal buffer
Shaft length 10 mm
max. operating temperature 80 °C
Type of mounting screw mounting
Material elastomer natural rubber, galvanized steel
Length 10 mm
Colour black
Height 10 mm
Logistics
Property Value
Customs tariff number 40169991
Country of origin DE
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
