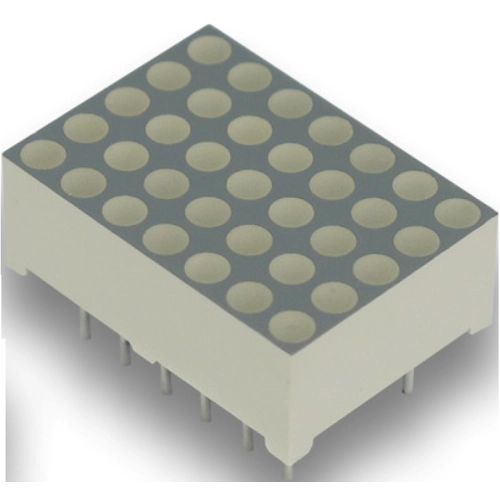

TC07-11EWA | Kingbright
Dot matrix display, 625 nm, 18 mm
Order No.: 71S1614
MPN:
TC07-11EWA
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.8084 € *
Standard delivery time from the manufacturer is: On Request
Dot matrix displays, type Kingbright TA../TC.
Package color: gray. Dot color: white.
Dot matrix displays, type TA07../TC07.
Display: 5 x 7 dots. Dimensions: 17.78 x 12.7 x 6.4 mm.
Technical attributes (type, emission color, wavelength, luminous intensity (min./typical) at 10 mA, common connection): TC07-11EWA, red, 625 nm, 1900/8000 µcd, cathode
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of positions | 35 | |
| Character height | 18 mm | |
| Colour | red | |
| Light intensity min. | 3.6 cd | |
| Light intensity typ. | 8.2 cd | |
| Wavelength | 627 nm | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85312020 |
| Original Packaging | Bar with 28 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
