SC56-11GWA | Kingbright

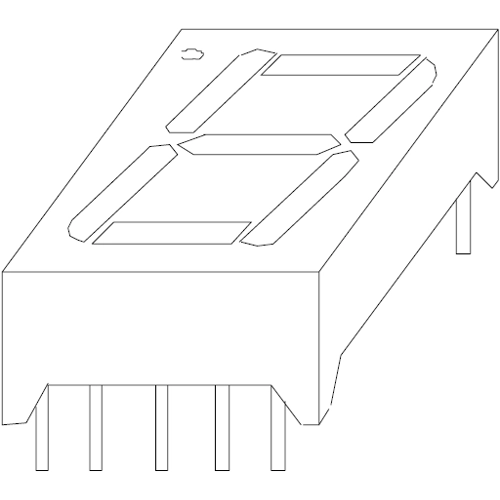

7-Segment Display SC56-11GWA
Order No.: 71S1570
MPN:
SC56-11GWA
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.9163 € *
Standard delivery time from the manufacturer is: 10 Weeks
7-segment displays, type Kingbright SA56../SC56.
Font height: 14.2 mm (0.56 inch). Package dimensions: 19.05 x 12.7 x 8.0 mm.
Technical attributes (type, emission color, wavelength, luminous intensity (min./typical) at 10 mA, common connection): SC56–11GWA, green, 568 nm, 1900/10500 µcd, cathode
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of positions | 1 | |
| Character height | 14.22 mm | |
| Colour | green | |
| Light intensity min. | 1.9 cd | |
| Light intensity typ. | 105 cd | |
| Wavelength | 565 nm | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85414100 |
| Original Packaging | Bar with 40 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
